Sell more service. Earn more per km. Increase safety. Reduce labour.
Quick Check® Commercial identifies all major alignment and tyre wear issues, on all axles, on all trucks.
What used to take minutes now takes seconds.
Scan every vehicle, uncover every opportunity.
3D tyre results help sell critical replacements
Flightboard™ results display provides complete transparency
Identify each vehicle automatically
Capture 40+ images of each vehicle as it enters

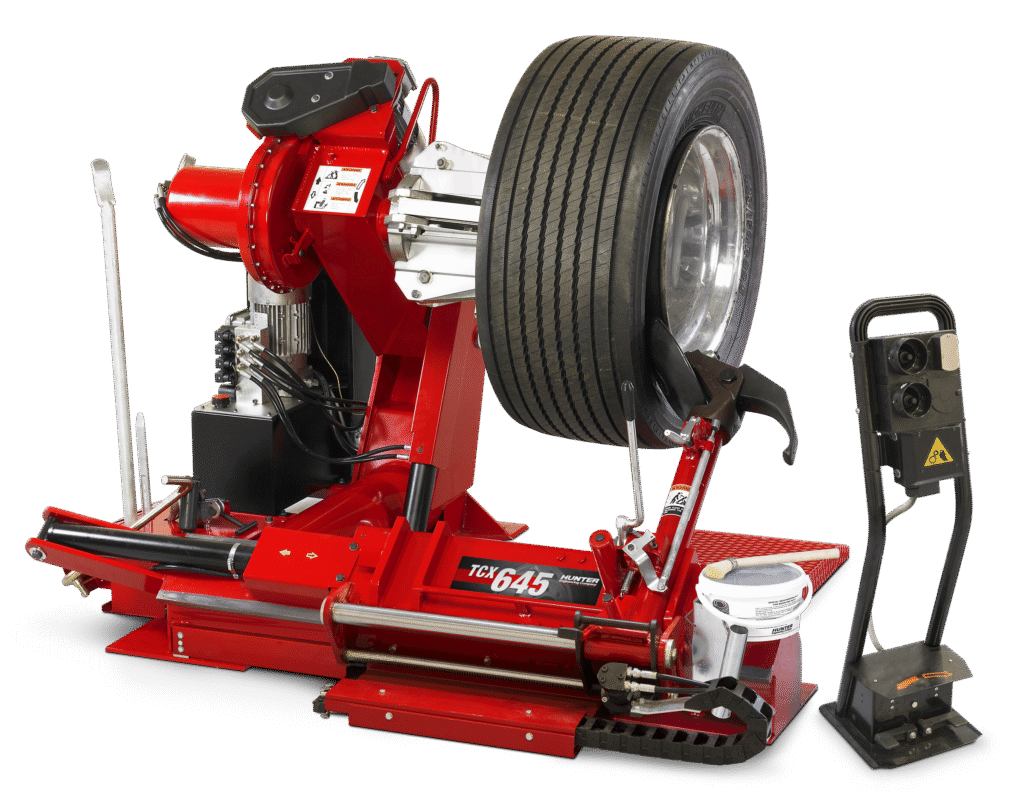

• 10 RPM clockwise and 5 RPM counter-clockwise
• 90” max tire diameter
• 14” – 46” rim clamping, up to 56” with optional accessories
• Match mounting capable
• Mobile controls – hand and foot pedestal control for multiple operations
• 3,527 capacity spindle head lifts the wheel into position
• Hydraulic platform with tool arm hydraulic shuttle
• Tulip style clamp – universal, self-centering with two-speed chuck rotation
• Integrated tool storage for standard and optional accessories
• Disk and hook tools standard
The worldwide standard in wheel alignment equipment
The ultimate in Two Camera Alignment System!
Supported by WinAlign Lite | By HUNTER

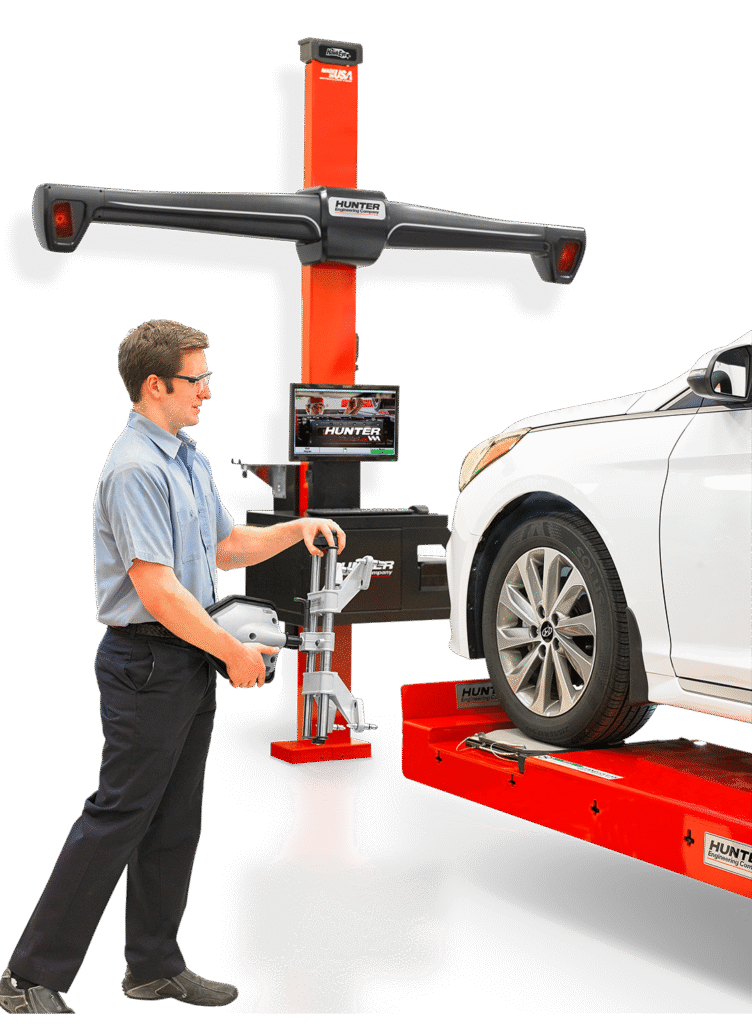

The HawkEye® HS 223 sets the benchmark for precision, speed, and ease of use in wheel alignment technology. Powered by advanced dual-camera imaging and revolutionary QuickGrip adaptors, it delivers unmatched accuracy while minimizing setup time and rim damage.
The versatility of the HawkEye® digital imaging technology with movable cameras allows shops to perform alignments on the floor or at any lift height.
Supported by WinAlign Lite | By HUNTER

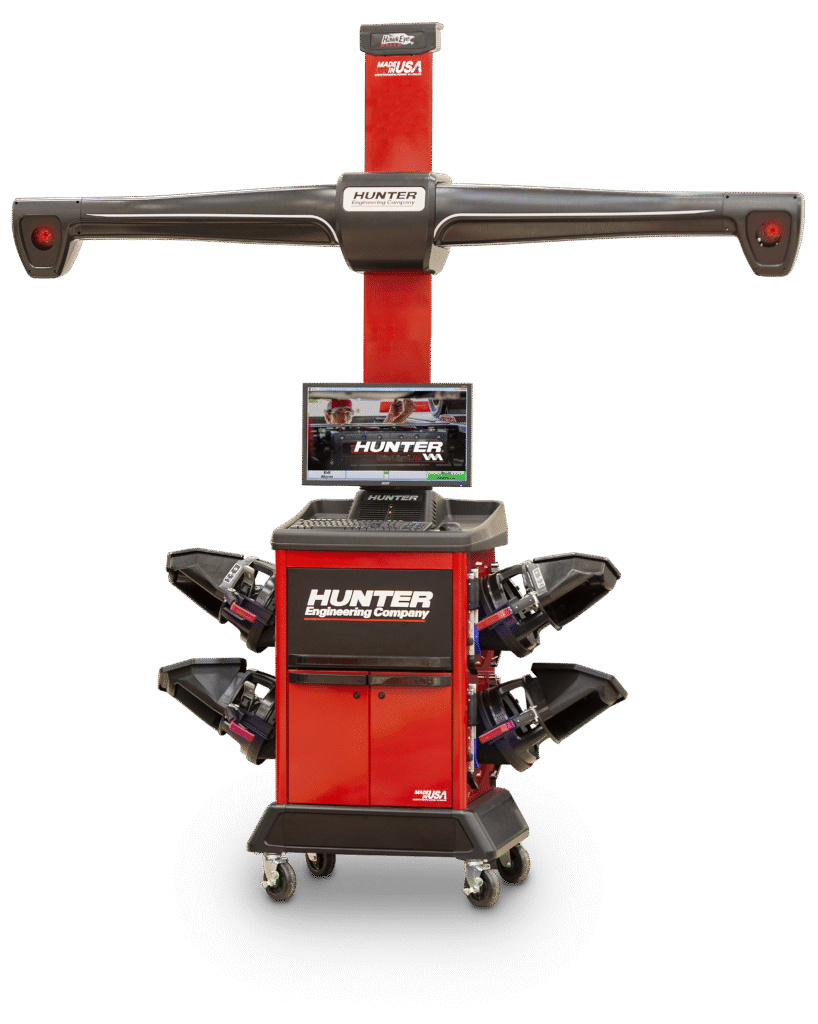

HawkEye® digital imaging technology offers shops alignment service optimized for speed and efficiency with simple operation and low cost of ownership.
Digital cameras measure the position and orientation of the wheels with pinpoint accuracy using reflective targets.
TCX57 Tyre Changer at-a-glance
